SMALL Panels
The RGB8.4LC will accept RGBHV Video signals up to 1024 x 768 displayed on a 8.4” 4x3 aspect ratio LCD panel. Input power is 12 volts.
Copyright © 2010 “RGB Display Corporation”. All Rights Reserved.

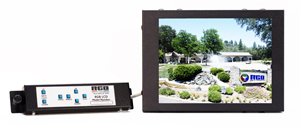

8.4” RGB8.4LC
$1,496.00
Item
Display Area
Number of Pixels
Pixel Pitch (mm)
Display Colors
Brightness
Color Gamut
Viewing Angle CR >10
Electrical Interface
Operation Temperature
Backlight
Specification
171.264 (H) x 128.448 (V) 8.4” Diagonal
1024 H x 768 V
0.168 (H) x 0.168 (V)
16.7M (8bit/color)
300 CD/M2
Approximately 50% of CRT reference
Horizontal ± 65°, Vertical -50° ~ 60°
LVDS
-20°C to 70°C
CCFL, 2 tubes

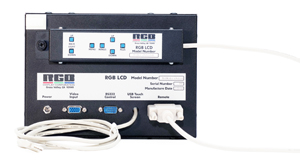

12” RGB12LC
$1,585.50
$1,585.50The RGB12LC will accept RGBHV video signals up to 1024 x 768 displayed on a 12.1” screen 4x3 aspect ratio. Input power is 12 volts.
Item
Display Area
Number of Pixels
Pixel Pitch (mm)
Display Colors
Brightness
Color Gamut
Viewing Angle CR>10
Electrical Interface
Operation Temperature
Backlight
Specification
245.76 (H) x 184.32 (V) 12.106” Diagonal
1024 H x 768 V
0.24 (H) x 0.24 (V)
16.7M (8 bit/color)
320 CD/M2
Approximately 50% of CRT reference
Horizontal ± 65°, Vertical -75° ~ 45°
LVDS
-20°C to 70°C
CCFL, 2 tubes
